TT-JAX ( .173" ) CONNECTORIZED JACKFIELDS
222
JACK PANELS
?
PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information
TT-JAX ? (.173") CONNECTORIZED JACKFIELDS –
SERIES TT, 2-WIRE, 4-WIRE, 6-WIRE (continued)
SPECIFICATIONS
Panel and Integral Designation Strip: Aluminum alloy,
extruded per QQ-A-200/8. Black anodized per MIL-A-8265.
Modules: Precision-molded thermosetting plastic. Black
standard. Other colors on special order.
Mounting Screws: Black zinc, #3-48 x 312" flat head
machine screw.
TT-Jax ? Jacks: See jacks section for TT-Jax ? specifications.
Marking Strip: Matte finish white plastic.
Vertical Designation Strip: Extruded aluminum, black
anodized.
Back Frames: Cold rolled steel, zinc-plated with iridescent
tarnish-resistant finish.
Screws, Nuts and Lockwashers: Steel, clear iridite
tarnish-resistant finish over zinc-plating.
Connectors: 50-pin micro/pierce plugs and receptacles.
Cable Tie Bar: Aluminum hexagon alloy. 6061-T6, clear iridite
finish per MIL-C-5541 (not hinged versions only).
Cables: 25 pair, 24 AWG solid copper wire, tinned and
annealed, covered with insulating grade thermoplastic jacket.
Cable Ties: Thermoplastic, locking-non-releaseable,
30 pounds minimum loop tensile strength.
2- & 4-Wire Connectorized Jackfields
(4-Wire Style Shown)

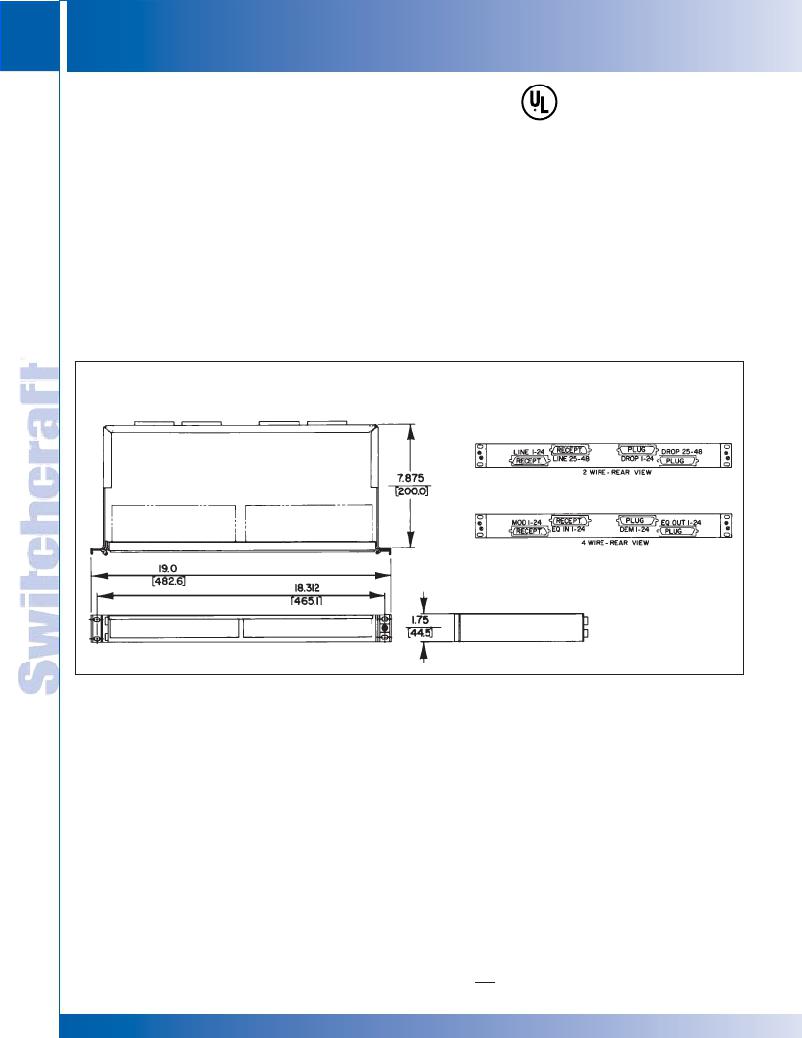

DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
